Cummins Diesel * 97,188 Miles
Triple-Slide (Full Wall Slide)
Sleeps 4 * Tag Axle
Workstation / Dinette option
1 and ½ Bath
Length 42 ft 10 in
Ext Width 8 ft 6 in
Ext Height 12 ft 8 in
Int Height 6 ft 11 in
GVWR 44,000 lbs.
Dry Weight 32,500 lbs.
Cargo Capacity 11,500 lbs.
Front Axle Weight (average)12,500 lbs.
Rear Axle Weight (average) 23,500 lbs. with Tag
Wheelbase 269 in + Tag
Hitch Weight 10,000 lbs.
Fresh Water Capacity 105 gals
Grey Water Capacity 65 gals
Black Water Capacity 45 gals
Oasis Water Heater, Unlimited Capacity
AC 45000 btu total
(3 units, 1 new 2018 & 1 new 2024)
Furnace 50,000 btu
Cummins ISC 8.3, 380 hp, 1050 ft-lb Torque, Diesel
Fuel Capacity 100 gals
Mechanical DEF, Capacity 10 gals
Allison 6 Speed Transmission
Freightliner Chassis with Air Ride Suspension
Michelin XRV Tires, Size 305 / 70R 22.5 (6, purchased 05/2022)
HWH Automatic Leveling System
Onan 8000-Watt Generator, 120 Volt 66 Amp (1K hours)
AGM Batteries (10, purchased 05/2023)
50 Amp Electrical Service Cord

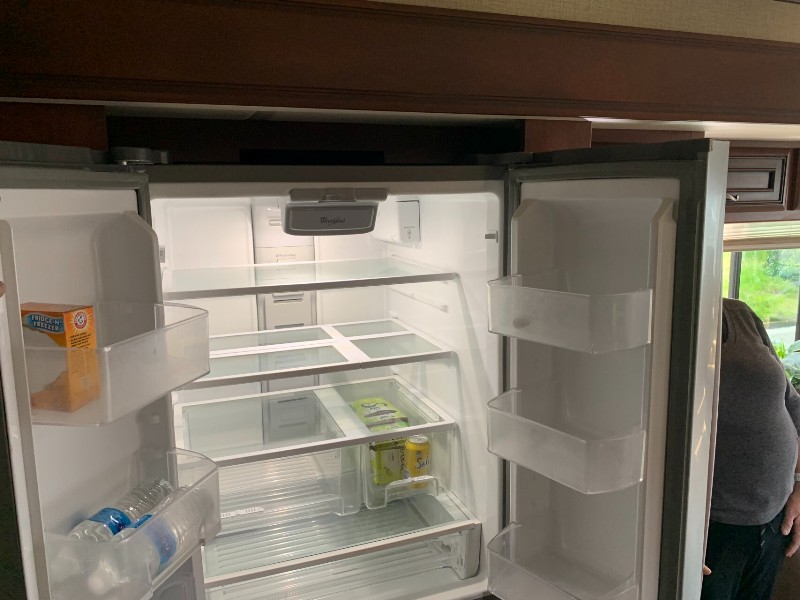

Whirlpool 20 cu ft Household Refrigerator (replaced in 2021)

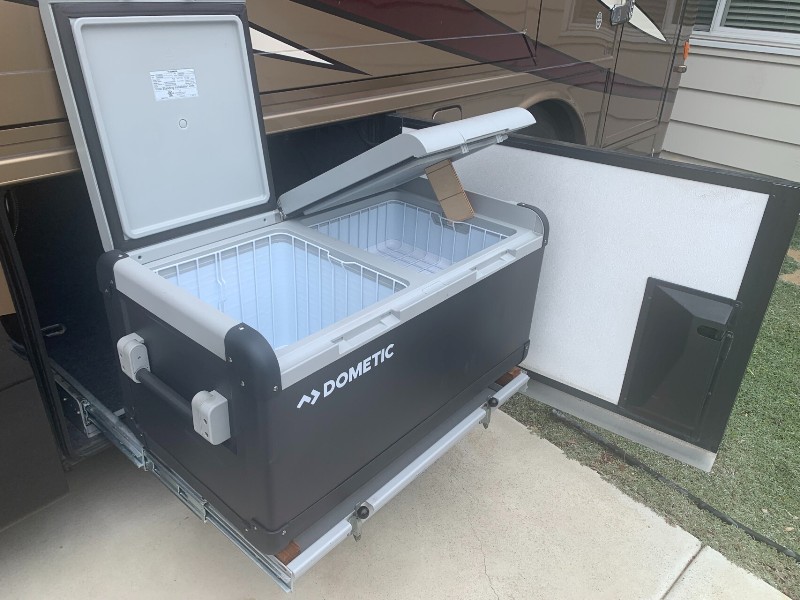

Dometic Dual Zone Basement Refrigerator / Freezer
Separate Whirlpool Washer and Dryer (Stacked)
Convection & Microwave Oven
2 Cooktop Burners (Electric)

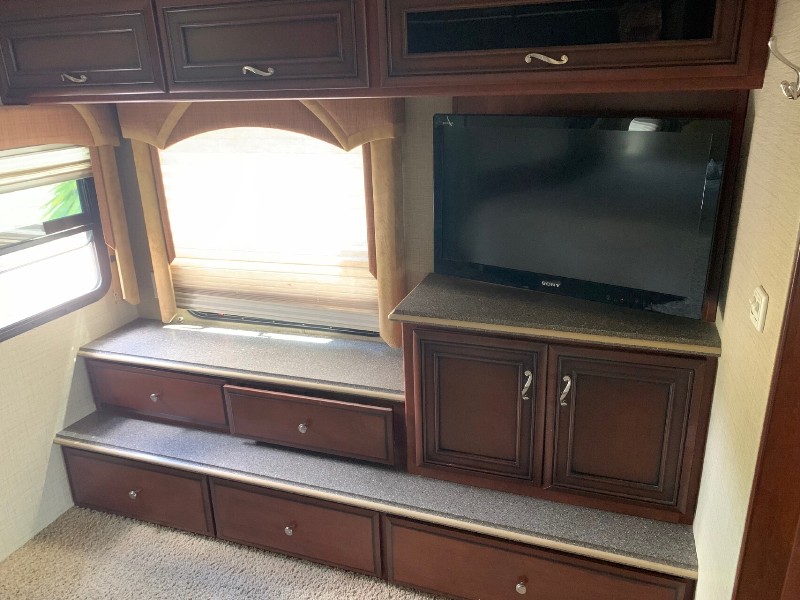

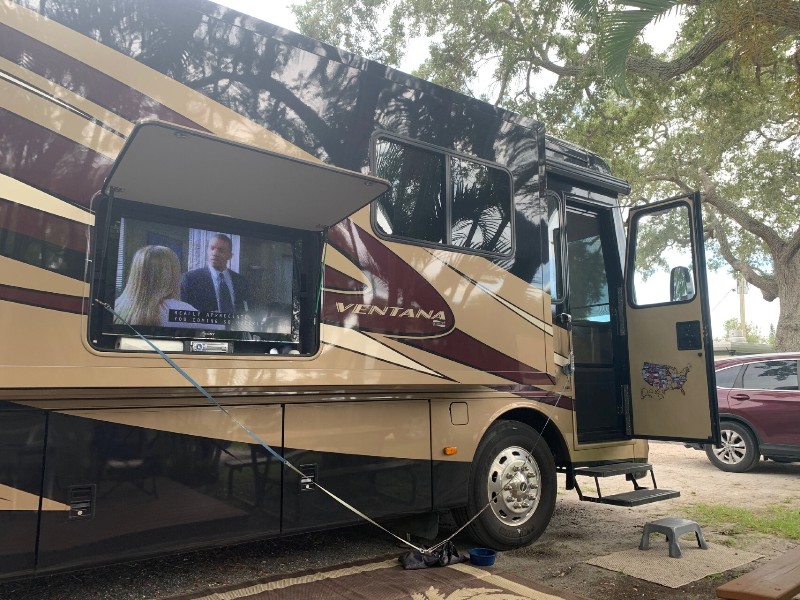

Sony 55 in LED TV (3 units)
Satellite Antenna (Direct TV & Dish compatible)
Dish Satellite Receiver “Wally”
Yamaha Stereo Receiver System
Alpine AM/FM Dash Radio
I-Com VHF 2 Meter Communication Radio
Power Awning with Wind Sensor and Remote
Power Door Awning with Remote
